Cabineo 8 M6 white (500 pcs)

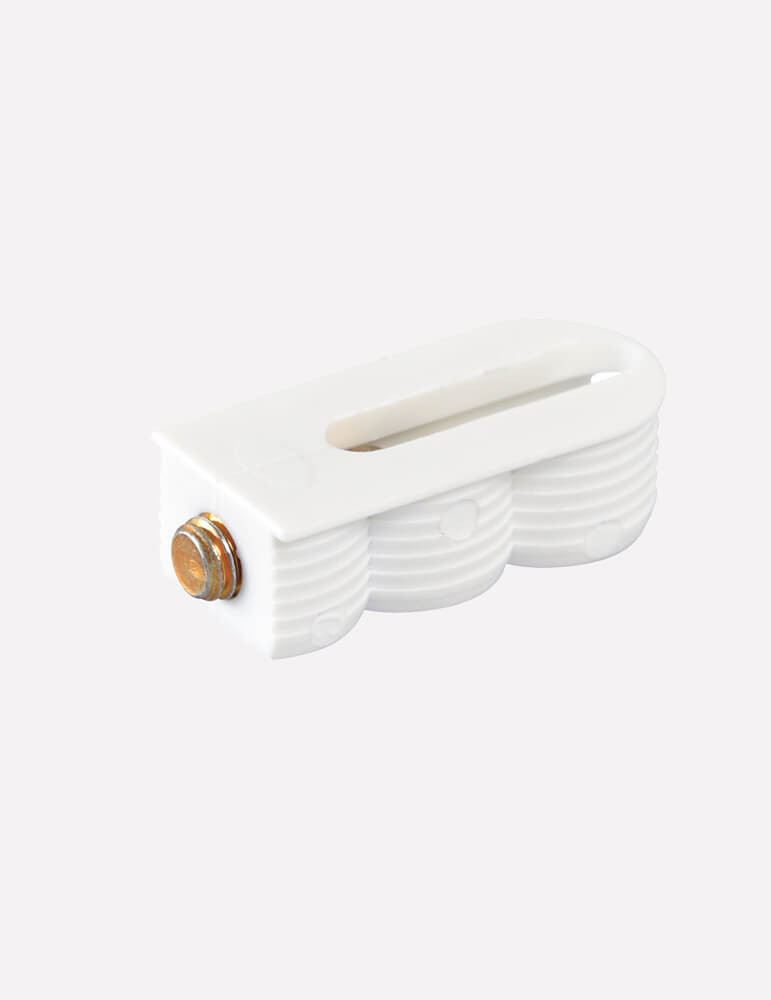

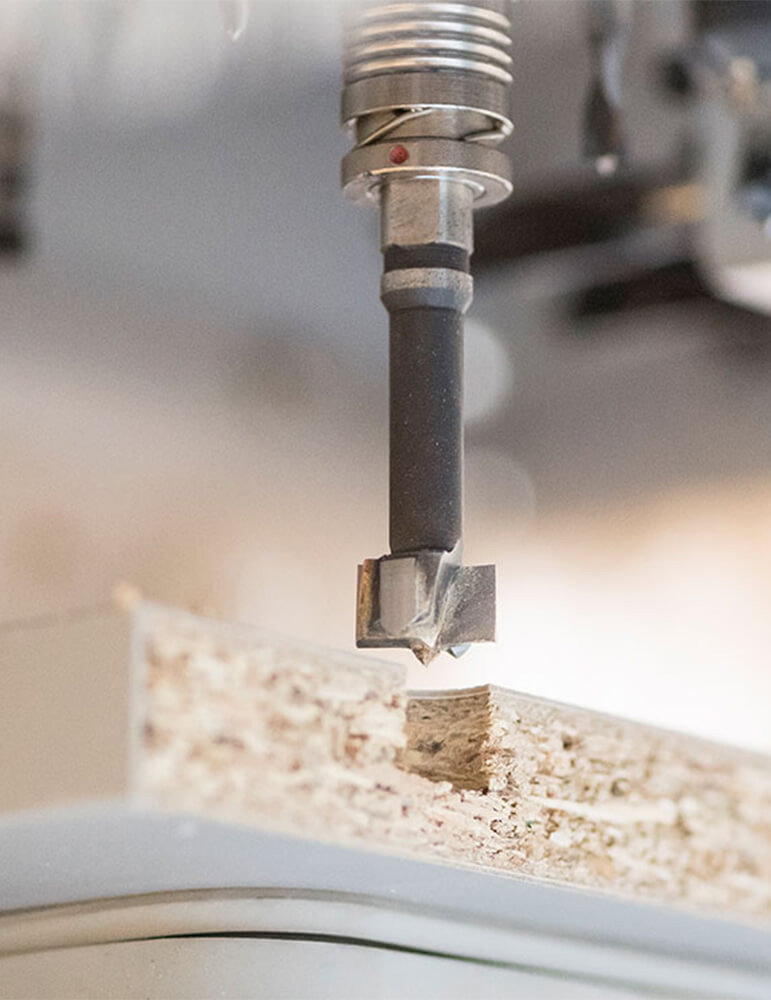

Cabineo 8 M6 is a one-piece cabinet connector which can be used with all CNC machines because only surface machining is required. The connector is ideal when joining wood composites with materials such as aluminium, steel or compact laminate.

After installing the connector in the board, the pre-assembled metric screw is screwed into a threaded hole or a socket, using a cordless drill. Cabineo impresses with its time-saving processing and assembly as well as the high clamping force which leads to stable connections without the need for additional dowels.

The Cabineo insert M6 is a threaded insert to drive in, which can be used in combination with the Cabineo 8 M6. It is ideal for applications where the thread cannot be cut directly into the workpiece or to increase the strength in corner and dividing panel joints. The Cabineo insert M6 is hammered into the through-hole of the middle panel so that the Cabineo can reach into the insert from both sides. The same connector and insert can be used everywhere for corner and dividing panels.

Advantages

• Wear-free connection
• High clamping force
• Various materials

Various materials

The Cabineo 8 M6 can be screwed directly into the material (HPL, aluminium, steel, etc.)

Same connector everywhere

Same connector for all joining situations

Wear-free connection

No wear and tear of the workpiece when it is assembled and disassembled multiple times
